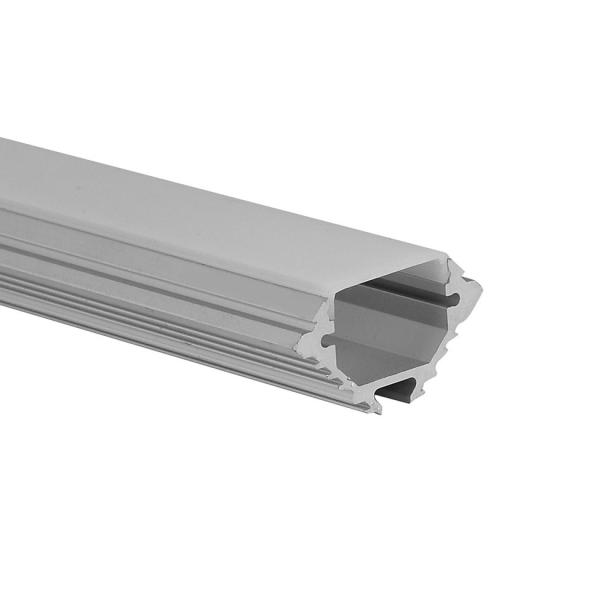

24x24mm 45 Degrees Angle Mounted LED Corner Aluminum Profile
Our quality Corner led profiles are very well designed for
90-degree corner installations. Designed to highlight corners,
perfect to provide an attractive and modern atmosphere on your
commercial or architectural lighting projects. Easy Installation.
Supplied in standard 1m or 2m lengths and cut-lengths can be
customized upon request. Fitting colors can be customized as well.
Application
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners
Assembly
- with a 45-degree mounting bracket for easy installation
Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm
Main Specifications
| Model No.: | KL11 |
| Item Type: | LED Corner Aluminum Profile |
| Dimensions: | (W)23.7*(H)23.7mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12.5mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days
Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |
Drawing:
Application
FAQ:
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just
freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum
length is 6 meters.
Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your
request. But the MOQ for the length longer than 2.5m is 500pcs per
item.
Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per
item, but it's upon to the exact item due to the different size and
weight.
Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30%
deposit and 70% balance before shipment.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is
confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the
order.
